NRT Vehicle Profiling System (VPS)
Elaborate Data Knitting Equiste Digital World
High quality data is the construction material for digital skyscrapers. Engined by NRT Algorithm software, a new level of traffic management is achieved
Features and Advantages
Industry leading features make NRT VPS an efficient, scalable, and smart solution for vehicle tracking, enforcement, and traffic management in modern transportation systems
High-Accuracy Measurements
-
Provides centimeter-level accuracy.
-
Captures 3D point cloud images of vehicles.
-
Supports vehicle classification, load detection, speed tracking, and more.
Advanced Integration Capabilities
-
Can integrate with various systems such as Weigh-in-Motion (WIM), cameras, and radar.
-
Enables seamless data collection and analysis with a single click.
Powerful Sensing Technology
-
Utilizes LiDAR for detailed vehicle scanning.
-
Supports two-way detection across four lanes, making it highly efficient for busy roads.
Portable & Easy Installation
-
Designed like LEGO blocks, allowing for quick assembly and relocation.
-
Cost-effective and easy to mount, reducing infrastructure requirements.

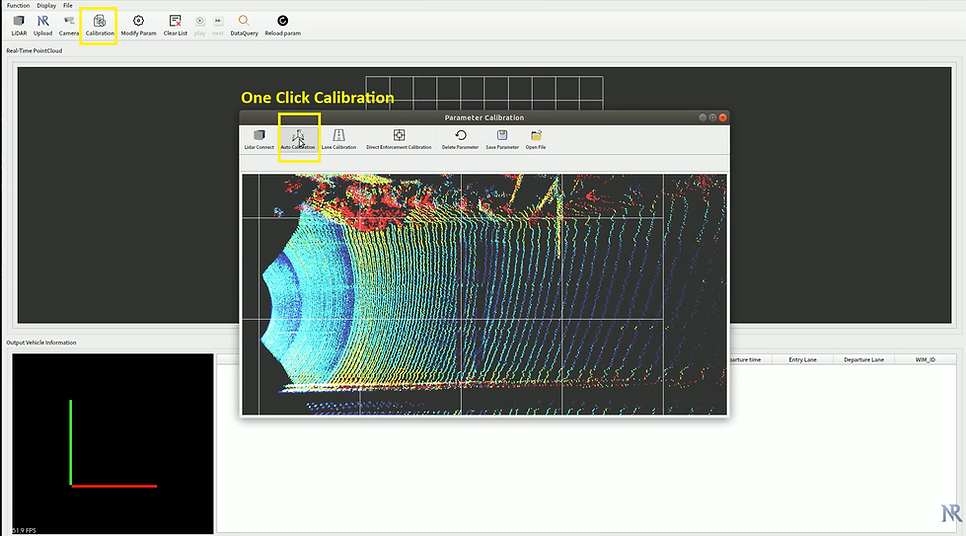

One Click Calibration
NRT VPS system is very easy to calibrate and use. Our advanced algorithm and features allow the client, to calibrate the whole system with a single click.
Weigh In Motion (WIM) Integration
NRT VPS system can be easily integrated into the WIM platform, and it can detect WIM platform Location and lane lines, as shown in the picture.
3D Point Cloud in WIM Platform
In this picture, our VPS system is showing 3D Point Cloud image, in the WIM platform. The integration is very effective and innovative
MLFF; Axle & Wheel Counter Integration
NRT MLFF System.
Our system is also capable of integrating MLFF; Axle & Wheel Counter into the platform, for smooth operation. It’s a complete solution for the clients.
SDK and API
We provide both SDK and API, for the easy integration with the clients software interface.
Advanced Detection
Our VPS system can detect the two-wheeler, like motorcycle. It can also detect the rear of the big truck and even the pole on the truck, which is industry leading and most advanced till now.

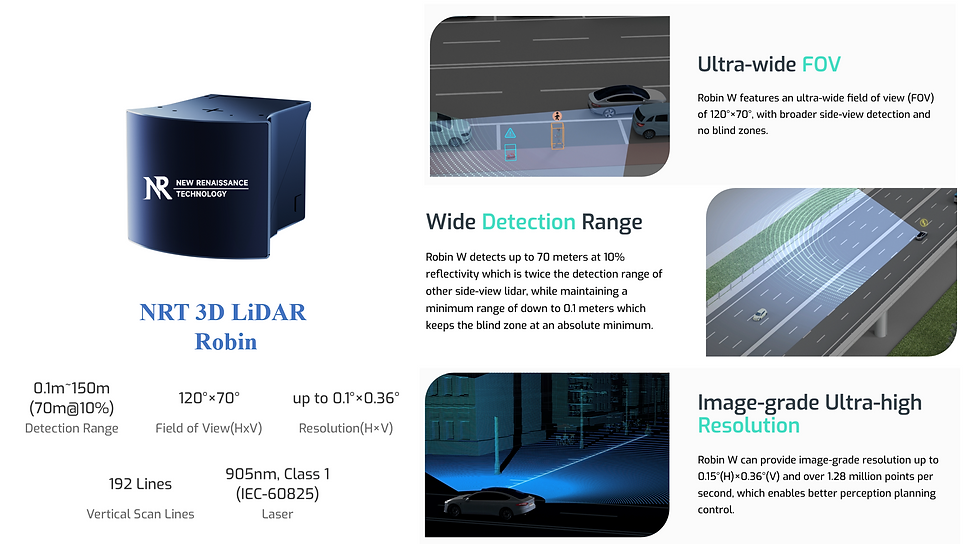

NRT 3D LIDAR Sensor
NRT 3D LiDAR is industry-leading; it offers Ultra-wide FOV, Wide Detection Rate, & Image-grade-high Resolution, accelerating the NRT VPS system to achieve high performance.
NRT VPS Specifications
Specifications
-
Counting rate : >99%
-
Tracking rate : >98%
-
Triggering rate : >98%
-
Classification accuracy : >95%
-
Vehicle speed : >90%
-
Loading Detection : >98%
-
Point cloud image : Provided
-
Detection Ranging : Central installation :4 lanes. Side-mounted: 2 lanes
